7101 series High quality prepared microscope slides

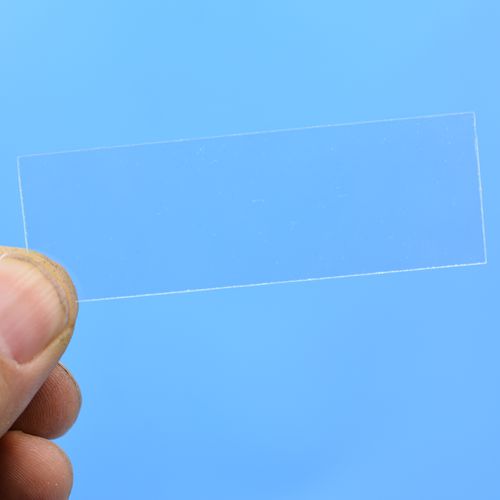

Product description:
Name: Slide
Model: 7101
Size: 25.4 mm * 76.2 mm * 1 mm ((1 "X 3"))
Special regulations: thickness of 1.2 mm, 1.5mm, 2.0mm

Packing:

⑴ 50 / box, 50 boxes / box, gross weight: 14 / 13KG / box, box rules: 38 * 19 * 16CM

⑵ 72 / box, 50 boxes / box, gross weight: 19 / 18KG / box, box regulations: 44 * 20 * 16CM

According to the processing technology points:

⑴ ordinary edging, 450 chamfer (most commonly used); if not chamfer is 900 angle

⑵ water mill polished side, 450 chamfer; if not chamfer is 900 angle Product Description: 1mm original piece of glass cut, and the edge of the slide for ordinary grinding chamfering or polishing grinding chamfer;

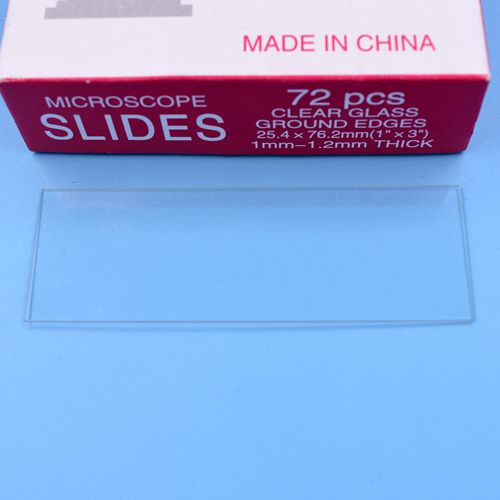

Size (L * W * H): 76.2mm * 25.4mm * 1mm
Change the original edge of the slide to make it straight and smooth, the original 90 degrees at right angles through the chamfer and into the 450 chamfer, the edge of the slide through the more refined.
Advantages of the glass: the edge of the glass grinding or polishing, so that the use of glass is not easy to stab, more operational, aesthetic degree has improved; especially the edge of the water after grinding the beauty of the lift Bigger.

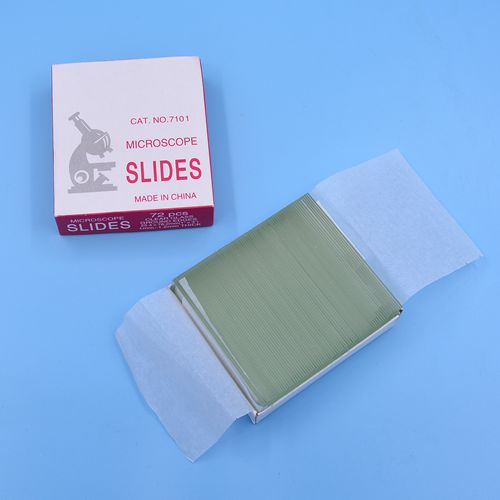

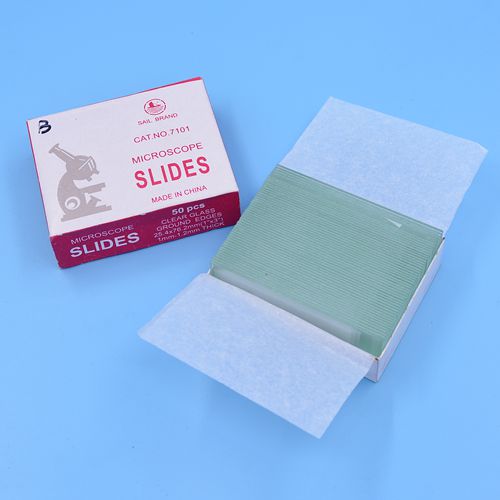

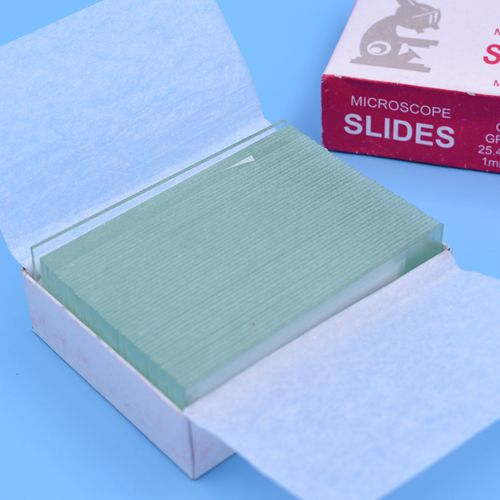

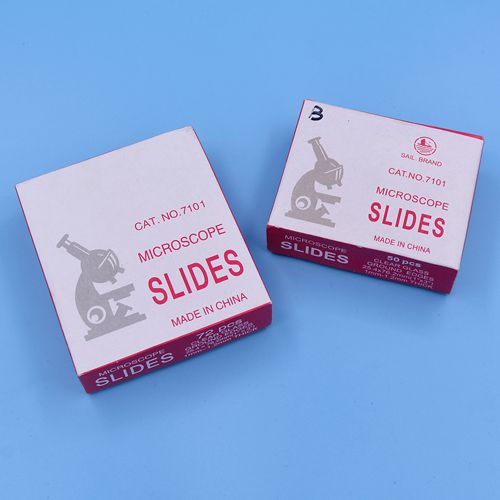

Packaging material:

1, ordinary coated white paper box (upper and lower cover type) commonly used

2, white cardboard carton (conjoined Buke box)
3, plastic box (upper and lower cover plastic type)

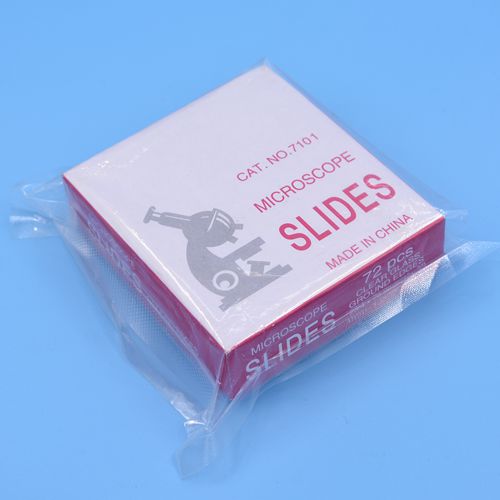

Vacuum way:

1, nylon bag vacuum (mainstream)

2, aluminum foil bag vacuum
3, PP material film

Storage: tray stacking, 7 layers below the height, keep dry and ventilated.
